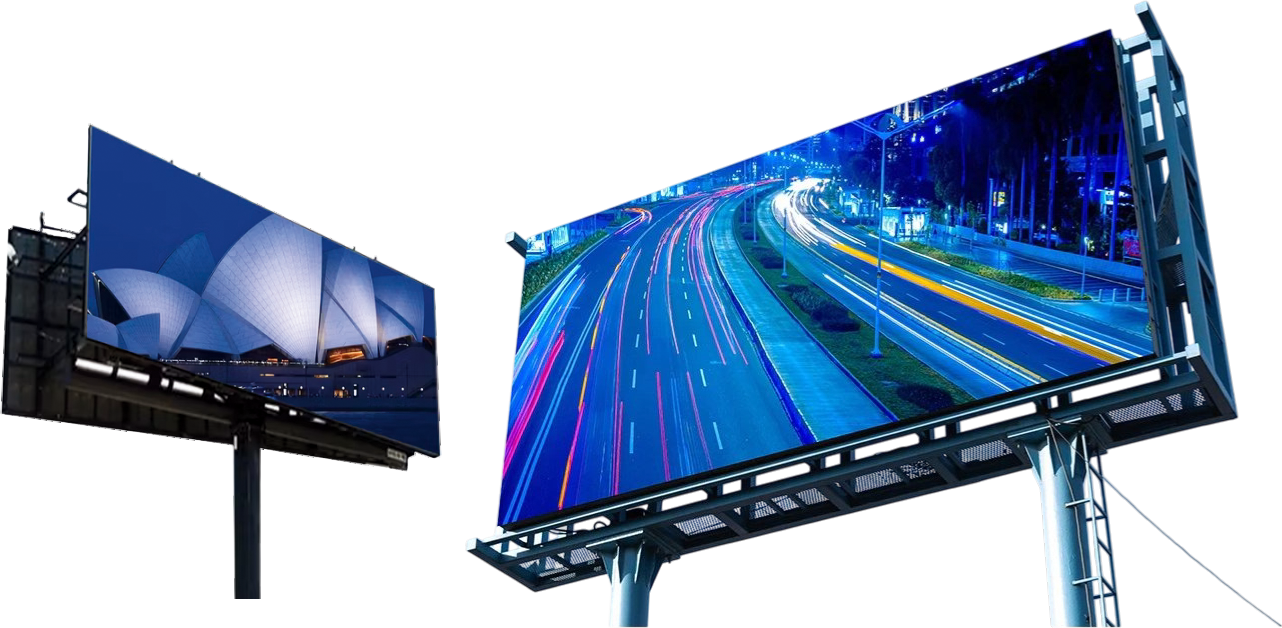

Outdoor Display

Outdoor Display

Application: Advertisement, Campaign, Event
Alternate Text

Suggested Size: From Ground Level
Suggested Size: 6ft x 4ft, 10ft x 5ft, 12x6, or any other desired size which is near to 16:9 aspect ratio.

Outdoor Display

Alternate Text

P2.5: (Minimum Viewing Distance (2.5 meters)
P3 : (Minimum Viewing Distance (3 meters)
P4 : (Minimum Viewing Distance (4 meters)
P5 : (Minimum Viewing Distance (5 meters)
P6 : (Minimum Viewing Distance (6 meters)

Outdoor Display Description

BLOCK MODULE P2.5 P3 P4 P5 P6
DIMENSION (W*H) 320MM * 160MM 320MM * 160MM 320MM * 160MM 320MM * 160MM 192MM * 192MM
LED CONFIGURATION SMD1415 SMD1921 SMD1921 SMD2525 SMD2525
INPUT VOLTAGE 4.5±0.1V 4.5±0.1V 4.5±0.1V 4.5±0.1V 4.5±0.1V
LIFE TIME 1,00,000HRS 1,00,000HRS 1,00,000HRS 1,00,000HRS 1,00,000HRS
RESOLUTION 128*64 = 8192 DOTS 104*52 = 5408 DOTS 80*40 = 3200 DOTS 64*32 = 2048 DOTS 32*32 = 1024 DOTS
MAXIMUM CURRENT ≤7.75A ≤7.75A ≤7.75A ≤7.75A ≤7.75A
DRIVING METHOD Constant Current 1/16 Scan Constant Current 1/13 Scan Constant Current 1/8 Scan Constant Current 1/8 Scan Constant Current 1/8 Scan
PIXEL DENSITY 1,00,000 DOTS 1,11,111 DOTS 62,500 DOTS 40,000 DOTS 27,777 DOTS
