Indoor Display

Indoor Display

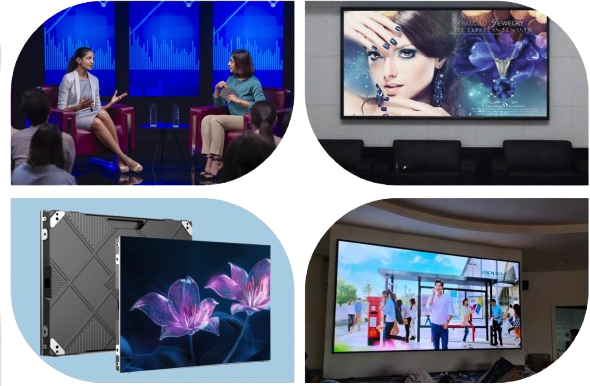

Application: Auditorium, Hall, Conference room
Alternate Text

Suggested Size: 6ft x 4ft, 10ft x 5ft, 12x6, or any other desired size which is near to 16:9 or 18:9 aspect ratio.

Indoor Display

Alternate Text

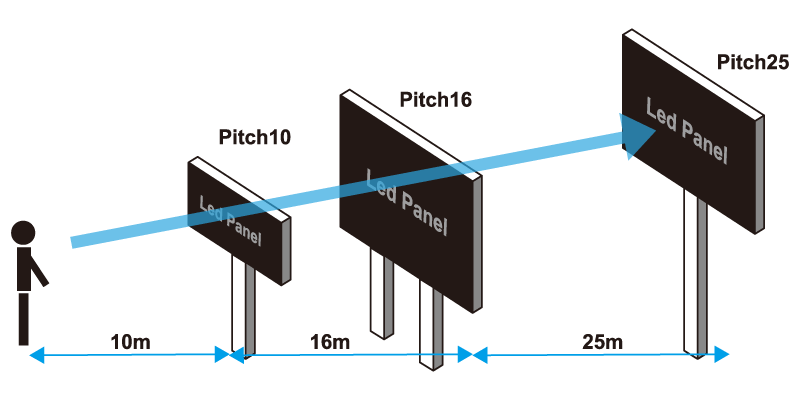

P1.25: (Minimum Viewing distance (1.25 meters)
P1.53: (Minimum Viewing Distance (1.53 meters)
P1.86: (Minimum Viewing Distance (1.86 meters)
P2 :(Minimum Viewing Distance (2 meters)
P2.5: (Minimum Viewing Distance (2.5 meters)
P3 : (Minimum Viewing Distance (3 meters)

Indoor Display Description

BLOCK MODULE P1.25 P1.53 P1.86 P2 P2.5 P3
DIMENSION (W*H) 320MM * 160MM 320MM * 160MM 320MM * 160MM 320MM * 160MM 320MM * 160MM 192MM * 192MM
LED CONFIGURATION SMD1010 SMD1212 SMD1515 SMD1515 SMD1921 SMD2121
INPUT VOLTAGE 4.5±0.1V 4.5±0.1V 4.5±0.1V 4.5±0.1V 4.5±0.1V 4.5±0.1V
LIFE TIME 1,00,000HRS 1,00,000HRS 1,00,000HRS 1,00,000HRS 1,00,000HRS 1,00,000HRS
RESOLUTION 256*128
=32,768 DOTS		 208*104
=21,632 DOTS		 172*86
=14,792 DOTS		 160*80
=12,800 DOTS		 128*64
=8,192 DOTS		 64*64
=4,096 DOTS
MAXIMUM CURRENT ≤7.75A ≤7.75A ≤7.75A ≤7.75A ≤7.75A ≤7.75A
DRIVING METHOD Constant Current
1/64 Scan		 Constant Current
1/52 Scan		 Constant Current
1/43 Scan		 Constant Current
1/43 Scan		 Constant Current
1/16 Scan		 Constant Current
1/8 Scan
PIXEL DENSITY 6,40,000
DOTS/㎡		 4,22,500
DOTS/㎡		 2,88,406
DOTS/㎡		 2,50,000
DOTS/㎡		 1,60,000
DOTS/㎡		 1,11,111
DOTS/㎡
